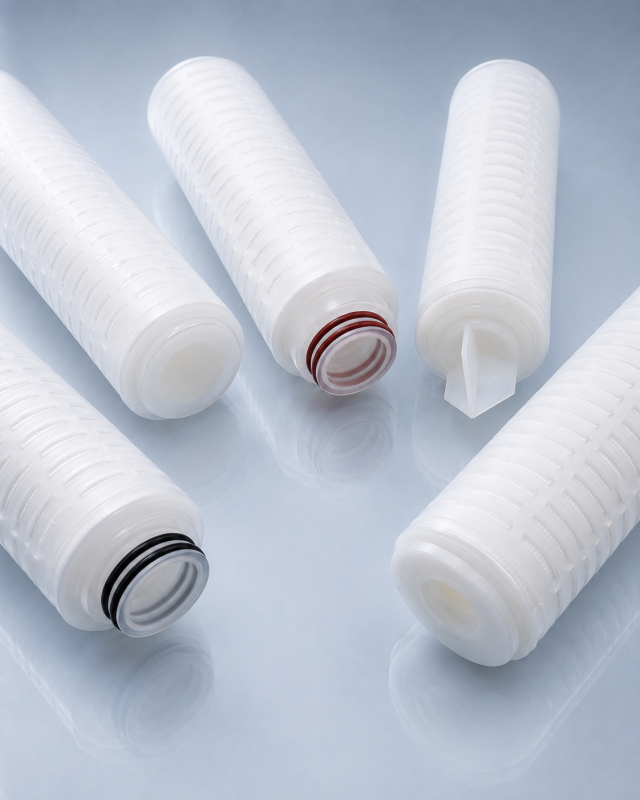

Industrial Pleated Filter Cartridge Solutions

Pleated Filter Cartridges Classified by Material, Micron Rating and Size

Incefiltration manufactures pleated filter cartridges for industrial liquid filtration, water treatment, food and beverage, electronics, chemicals, pharmaceuticals, RO pre-filtration and process polishing. Compared with many depth cartridges, pleated cartridges provide a larger filtration area in a compact body, supporting higher flow, lower pressure drop and longer service life.

View Material Types Get a Custom Quote

Common Pleated Cartridge Options

MaterialsPP, PES, PTFE, nylon, glass fiber and custom composite media
Micron Ratings0.1, 0.22, 0.45, 1, 3, 5, 10, 20, 40, 50, 100 µm
Lengths5", 10", 20", 30", 40" and customized cartridge lengths
End CapsDOE, SOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin and custom ends

Why Choose Pleated Filter Cartridges?

Pleated cartridges are selected when buyers need a balance of filtration accuracy, flow capacity, dirt holding performance and easy replacement in standard cartridge housings.

Larger Filtration Area

The folded pleated structure increases effective surface area, allowing higher flow capacity inside the same cartridge length.

High flowLow pressure drop

Stable Micron Rating

Different membrane and fiber media can be selected for nominal, high-efficiency or absolute filtration requirements.

Fine filtrationProcess polishing

Flexible Compatibility

End caps, gaskets, core material, outer cage and length can be customized to match existing cartridge housings.

OEM sizeCustom end cap

Pleated Filter Cartridges by Material

Material selection is the first step when choosing a pleated filter cartridge. It affects chemical compatibility, operating temperature, filtration efficiency and the final application range.

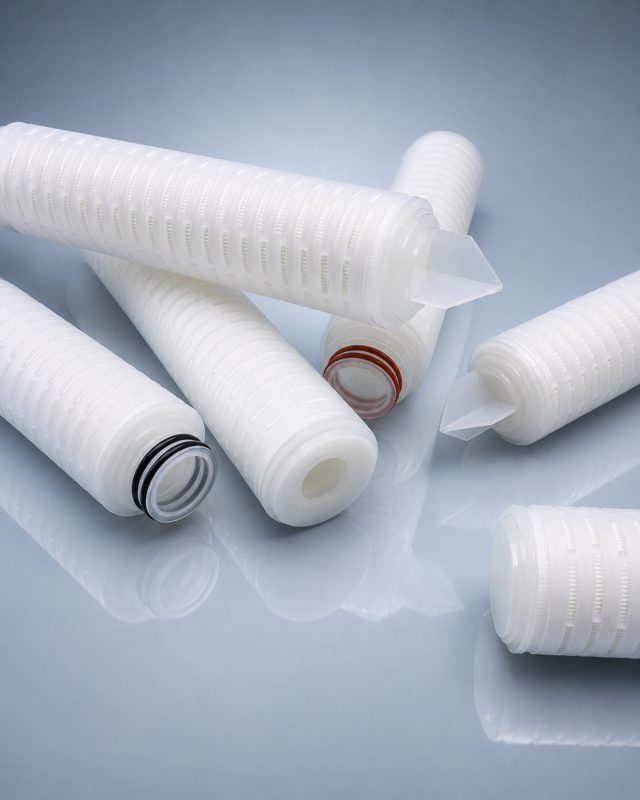

PP Pleated Filter Cartridge

Cost-effective polypropylene pleated cartridge for water and general process liquids

PP pleated filter cartridges are widely used in water treatment, RO pre-filtration, chemicals, electronics, plating liquid and general industrial liquid filtration. Polypropylene provides good compatibility with many aqueous solutions and offers an economical choice for high-volume replacement use.

MediaPolypropylene membrane or fiber media
Common Rating0.1–100 µm
Best ForWater and general industrial filtration
Economical replacement cost Low fiber release design options Wide chemical compatibility in water systems Standard and custom end caps

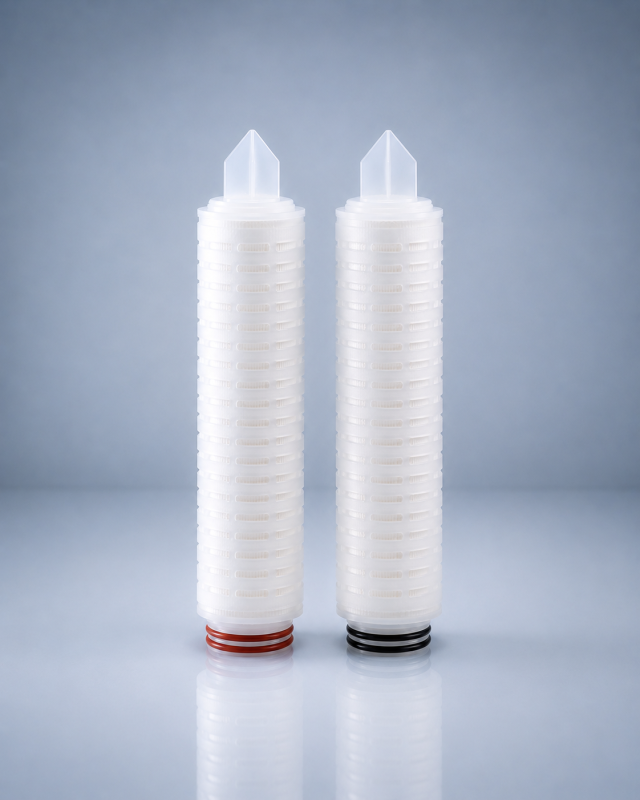

PES Pleated Filter Cartridge

Polyethersulfone membrane cartridge for high-flow fine filtration

PES pleated filter cartridges are often selected for applications requiring high flow, low protein binding and fine particle retention. They are commonly used in beverage, pharmaceutical water, pure water, laboratory liquid filtration and process polishing systems.

MediaPES membrane
Common Rating0.1, 0.22, 0.45, 0.65, 1.0 µm
Best ForFine liquid filtration and polishing
High flow membrane structure Suitable for fine filtration Good option for process water polishing Multiple adapter configurations

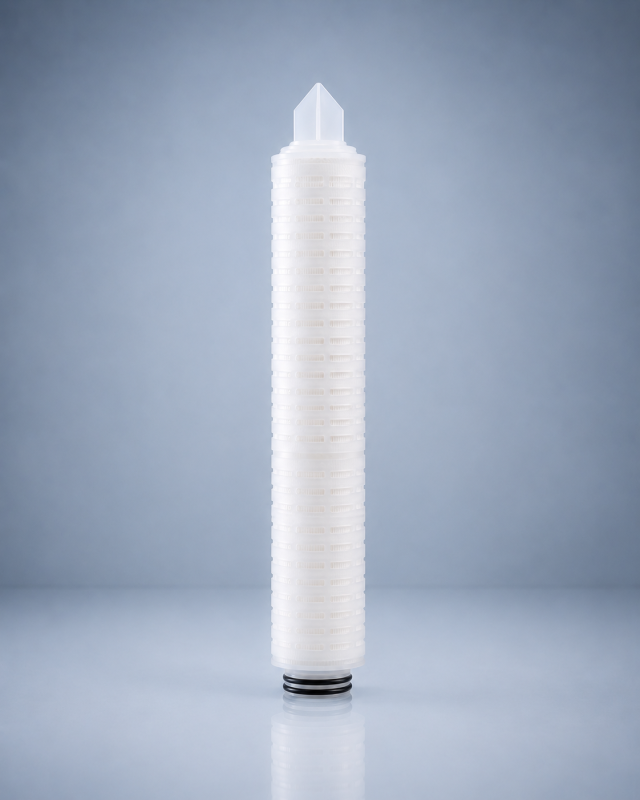

PTFE Pleated Filter Cartridge

PTFE membrane cartridge for aggressive chemicals and gas filtration

PTFE pleated cartridges are chosen where strong chemical resistance or hydrophobic filtration behavior is required. They are suitable for selected solvents, aggressive chemicals, air and gas filtration, vent filtration and demanding industrial environments.

MediaPTFE membrane
Common Rating0.1, 0.22, 0.45, 1.0 µm
Best ForChemicals, solvents, air and gas
Strong chemical resistance Hydrophobic membrane options Suitable for vent and gas filtration Custom seal and cage materials

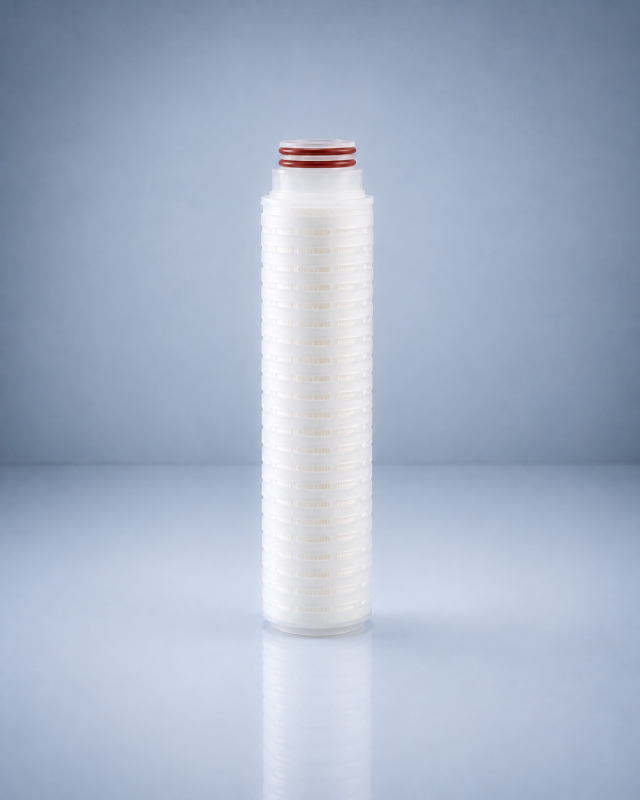

Nylon Pleated Filter Cartridge

Nylon membrane cartridge for solvents and fine particle retention

Nylon pleated filter cartridges provide good strength and are commonly used for compatible solvent filtration, chemical processing, electronics liquids, coatings, inks and fine particle control. Nylon media is often chosen where wettability and mechanical strength are important.

MediaNylon 6 / Nylon 66 membrane
Common Rating0.22, 0.45, 0.65, 1, 5 µm
Best ForSolvents, chemicals and electronics liquids
Good mechanical strength Fine particle retention Compatible solvent applications Multiple pore size options

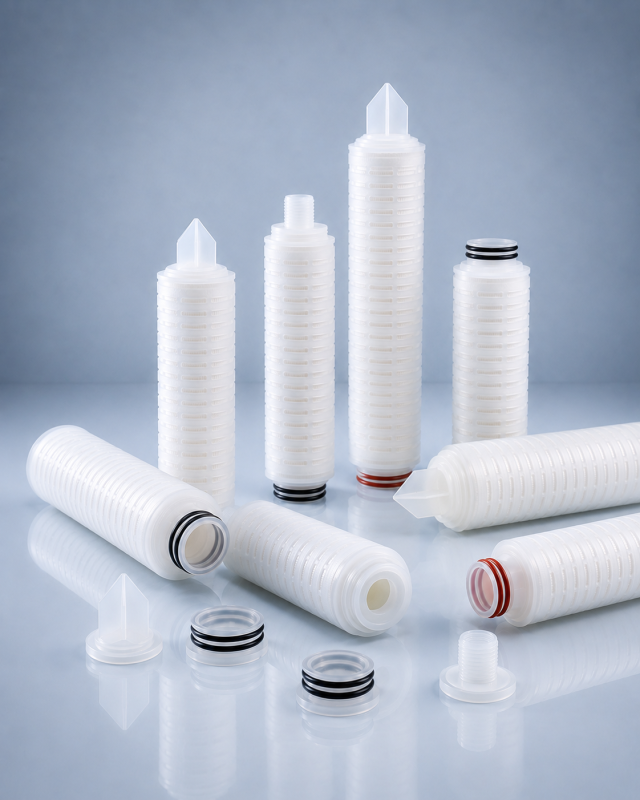

Glass Fiber Pleated Filter Cartridge

High dirt holding cartridge for pre-filtration and high particle loading

Glass fiber pleated cartridges are suitable for applications with higher particle load, viscous liquids or pre-filtration requirements. They offer strong dirt holding performance and are often used before finer membrane cartridges to reduce operating cost.

MediaGlass fiber pleated media
Common Rating0.5–100 µm
Best ForPre-filtration and high dirt loading
High dirt holding capacity Good for pre-filtration stages Reduces load on final filters Custom support and core options

Pleated Filter Cartridges by Micron Rating

Micron rating should be selected according to particle size, filtration purpose, downstream equipment sensitivity and acceptable pressure drop. Incefiltration can support both common and custom filtration ratings.

Fine Filtration / Polishing Grade

Used for high cleanliness requirements, final filtration, membrane protection, beverage polishing and precision process liquids.

0.1 µm 0.22 µm 0.45 µm 0.65 µm 1 µm

General Process Filtration Grade

Suitable for liquid clarification, process filtration, RO pre-treatment, chemical filtration and general particle control.

3 µm 5 µm 10 µm 20 µm 25 µm

Coarse Pre-Filtration Grade

Designed for larger particle removal, protection before finer cartridges and applications requiring lower pressure drop.

30 µm 40 µm 50 µm 70 µm 100 µm

Pleated Filter Cartridges by Size

Cartridge size determines housing compatibility, filtration area and replacement accuracy. When ordering pleated filter cartridges, please confirm cartridge length, outside diameter, inside diameter and the current model number or housing drawing.

Standard Cartridge Lengths

Common pleated cartridge lengths include 5 inch, 10 inch, 20 inch, 30 inch and 40 inch. Longer or non-standard lengths can be customized for OEM housings and special filtration equipment.

5 inch 10 inch 20 inch 30 inch 40 inch Custom length

Outside Diameter Options

Standard pleated cartridges are commonly supplied around 2.5 inch outside diameter, while larger diameter or compact custom OD cartridges can be developed according to housing design.

2.5 inch OD Large diameter Compact OD Custom OD

Inside Diameter & Core

Inner diameter and center core structure affect flow channel, pressure resistance and cartridge strength. Incefiltration can provide PP core, reinforced plastic core, stainless steel core or custom support designs.

Standard ID Custom ID PP core Stainless steel core
Size Item Common Options Selection Notes
Length 5", 10", 20", 30", 40", custom Longer cartridges provide more filtration area but must match the housing height.
Outside Diameter Common 2.5" OD, large diameter, custom OD OD must fit the housing basket or cartridge chamber without interference.
Inside Diameter Standard ID or custom ID ID affects flow path and compatibility with center posts or adapters.
Core Structure PP core, reinforced plastic core, stainless steel core Choose according to pressure, temperature and chemical compatibility requirements.

Pleated Filter Cartridges by End Cap Type

End cap type determines how the pleated cartridge seals and locks into the filter housing. The correct end cap helps prevent bypass, leakage and installation mismatch.

DOE End Cap

DOE means double open end. It is commonly used in standard industrial housings where both ends are open and sealing is achieved through gaskets and housing compression.

Double open end General housings Economical replacement

SOE End Cap

SOE means single open end. One end is closed or finned while the other end connects to the housing adapter. SOE cartridges are often used where more controlled sealing is required.

Single open end Adapter sealing Controlled flow path

222 Adapter

222 adapters are common in sanitary and industrial housings. They can be supplied with flat end, fin end or custom closed end structures depending on housing design.

222 / Flat 222 / Fin O-ring seal

226 Adapter

226 adapters provide secure O-ring sealing and are frequently used in higher-reliability filtration systems, including food, beverage, process water and fine filtration applications.

226 / Flat 226 / Fin Secure sealing

Flat, Fin & Closed End

Flat end, fin end and closed end structures are selected according to how the cartridge locates inside the housing. Fins help positioning and locking in many SOE configurations.

Flat end Fin end Closed end

Custom End Cap

Custom end caps can be developed from samples, drawings or replacement models for OEM filter housings, imported equipment and non-standard cartridge systems.

OEM design Sample matching Drawing support
End Cap Type Common Structure Recommended Use Seal Notes
DOE Double open end General industrial cartridge housings Sealing depends on gasket and housing compression.
SOE Single open end with closed or finned opposite end Controlled flow path and adapter-based housings Check adapter size, gasket material and end style.
222 Adapter 222 O-ring adapter with flat or fin end Sanitary, process and fine filtration housings O-ring material should match the working liquid.
226 Adapter 226 O-ring adapter with flat or fin end Higher sealing reliability and precision filtration Confirm adapter diameter and locking structure.
Custom End Cap Designed by drawing, sample or model number OEM systems, imported equipment and non-standard housings Photos, drawings or samples help confirm fit before production.

General Pleated Filter Cartridge Specification Table

The following table gives common specification options. Final parameters can be adjusted according to the working liquid, filtration grade, operating temperature and housing design.

Classification Available Options Typical Applications Customization Notes
Material PP, PES, PTFE, nylon, glass fiber, composite media Water, chemicals, beverage, pharmaceutical water, solvents, gases Material should be selected according to chemical compatibility and temperature.
Micron Rating 0.1–100 µm; common: 0.22, 0.45, 1, 5, 10, 20, 50 µm Fine filtration, polishing, pre-filtration, process clarification Nominal or high-efficiency rating can be discussed based on media.
Length 5", 10", 20", 30", 40" and customized Standard cartridge housings and OEM filtration systems Send housing size or original cartridge model for replacement confirmation.
End Cap DOE, SOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, custom Industrial cartridge housings, sanitary housings, equipment systems See the separate End Cap Type section for DOE, SOE, 222, 226 and custom structures.
Gasket / O-Ring Silicone, EPDM, NBR, Viton / FKM, PTFE encapsulated options Water, chemical, food, solvent and high-purity systems Choose gasket according to liquid compatibility and operating temperature.
Core & Cage PP, stainless steel, reinforced plastic or custom support structure General filtration, high-flow systems, chemical service Higher strength structures can be selected for demanding working conditions.

Applications of Pleated Filter Cartridges

Pleated filter cartridges can be used as pre-filters, final filters or polishing filters in many industrial and commercial liquid filtration systems.

Water Treatment

Industrial water, RO pre-filtration, pure water, wastewater reuse and process water filtration.

Food & Beverage

Beverage clarification, process water filtration and liquid polishing where suitable materials are confirmed.

Pharmaceutical & Lab

Fine liquid filtration, pharmaceutical water, lab filtration and high cleanliness process support.

Electronics

Particle control in electronics process water, chemicals and precision manufacturing liquids.

Chemical Processing

Compatible chemical filtration, solvents, acids, alkalis and process liquid clarification.

Paints & Coatings

Particle removal for coatings, inks, resins and other compatible viscous liquids.

Air & Gas

PTFE and other suitable media options for vent, air and gas filtration applications.

OEM Equipment

Custom pleated cartridges for filter housings, skids, water systems and branded equipment.

Custom Pleated Filter Cartridge Service

Incefiltration supports standard and customized pleated cartridges for distributors, OEM system builders, filtration equipment suppliers and industrial end users.

Confirm Application

Provide liquid type, temperature, pressure, flow rate, filtration purpose and current filter problem.

Select Media

Choose PP, PES, PTFE, nylon, glass fiber or composite media based on compatibility and filtration target.

Match Size & End Cap

Confirm length, OD, ID, end cap, adapter, gasket material and housing structure.

Produce & Supply

Support samples, batch production, OEM labeling, private packaging and long-term export supply.

Need a Custom Pleated Filter Cartridge?

Send your material, micron rating, length, end cap type, gasket material and application. Incefiltration will recommend a suitable pleated filter cartridge specification.

Request Technical Quote

Pleated Filter Cartridge FAQ

Common questions before selecting or purchasing industrial pleated filter cartridges.

How do I choose the right pleated filter cartridge material?

Start with chemical compatibility and filtration purpose. PP is widely used for water and general liquid filtration. PES is common for high-flow fine filtration. PTFE is selected for aggressive chemicals, solvents, air and gas. Nylon is suitable for selected solvent and chemical filtration. Glass fiber is often used for pre-filtration and higher dirt loading.

What micron rating should I choose?

Use 0.1–1 µm for fine filtration and polishing, 3–25 µm for general process filtration, and 30–100 µm for coarse pre-filtration or protection before finer filters. The best choice depends on particle size, liquid viscosity, flow rate and pressure drop requirement.

Can Incefiltration customize the end cap?

Yes. DOE, SOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin and custom end caps can be supplied according to your housing, drawing, sample or replacement model.

What information is needed for a quotation?

Please provide material, micron rating, length, outside diameter, inside diameter, end cap type, gasket material, working liquid, operating temperature, pressure, flow rate and quantity.

Do you supply OEM pleated filter cartridges?

Yes. Incefiltration supports OEM model codes, private label packaging, custom cartridge dimensions, special media combinations and bulk export orders for distributors and equipment manufacturers.
