Industrial Liquid Filtration Equipment

Filter Housings for Bag, Cartridge, High-Flow and Automatic Filtration

Incefiltration manufactures industrial filter housings for water, chemicals, food and beverage, coatings, electronics, pharmaceuticals, petroleum and process liquids. Select by flow rate, filtration element, pressure, corrosion resistance, automation and maintenance requirements.

Explore Housing TypesGet a Custom Proposal

Custom Engineering Options

Housing Materials304 / 316L stainless steel, carbon steel, PPH and PVDF
Filter ElementsFilter bags, pleated cartridges, high-flow cartridges and reusable screens
ConnectionsFlange, threaded, sanitary clamp and custom nozzles
Custom ScopeFlow capacity, element count, orientation, seals, controls and skid integration

Industrial Filter Housings by Type

Each product category is presented as an independent module for clear navigation and SEO structure.

Single Bag Filter HousingCompact batch and process filtrationMulti Bag Filter HousingHigh-flow bag filtration systemsAutomatic Self-Cleaning HousingContinuous filtration with automated cleaningHigh-Flow Filter HousingLarge-flow cartridge filtrationMicron Pleated Filter HousingFine pleated cartridge filtrationPrecision Safety Filter HousingFinal equipment protectionPPH / PVDF Filter HousingCorrosion-resistant plastic housingsCustom Filter HousingOEM and project engineering
SINGLE BAG FILTER HOUSING IMAGEReplace with a side-entry or top-entry housing photo
1 Filter BagCompact FootprintFast Bag Change
Bag Filtration · Compact System

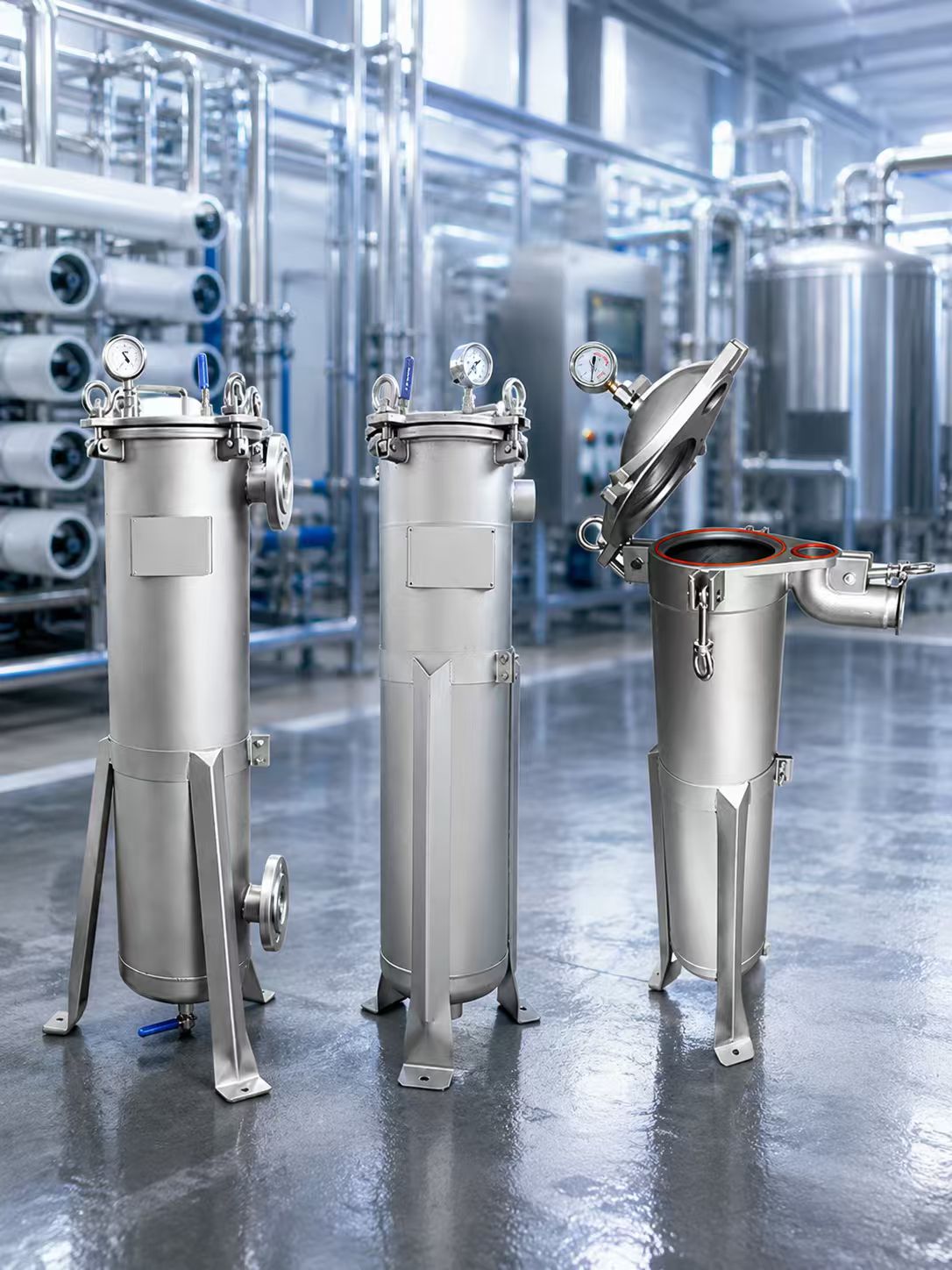

Single Bag Filter Housing

An economical choice for batch processing, transfer lines and general liquid clarification. Available in side-entry, top-entry, swing-bolt, clamp and quick-opening designs.

Low-to-medium flow systems
Easy bag replacement
Stainless or carbon steel
Side-entry and top-entry
Multiple bag sizes
Optional support basket
ElementOne liquid filter bag
Best ForBatch and process filtration
CustomPorts, seals, finish and legs
Side EntryTop EntrySwing Bolt304 / 316L
Request Single Bag Quote
MULTI BAG FILTER HOUSING IMAGEReplace with a 2, 4, 6, 8, 10 or custom bag housing photo
Multiple BagsHigh FlowParallel Layout
Bag Filtration · High Flow

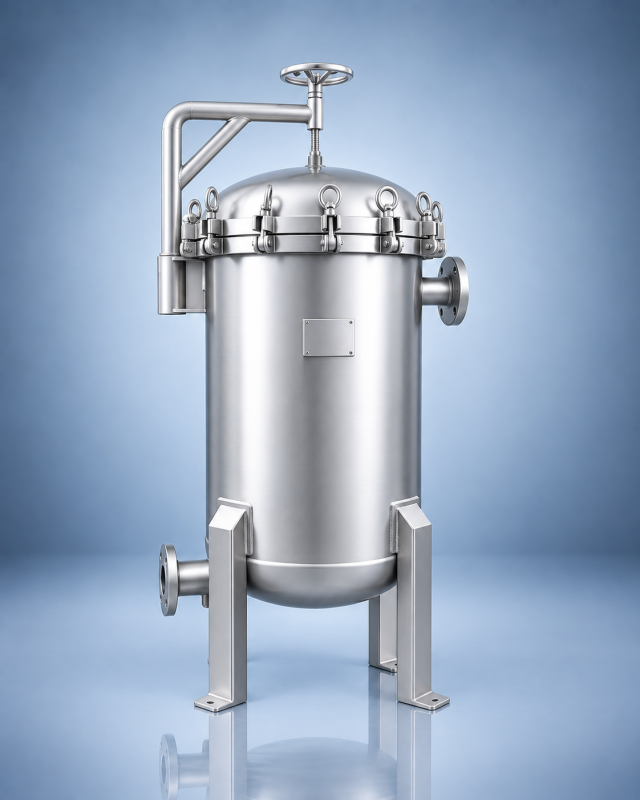

Multi Bag Filter Housing

Several filter bags operate in parallel inside one vessel to increase total area and capacity for large process streams, cooling water, chemicals, coatings and edible oils.

Multiple bags in parallel
Higher flow capacity
Lower face velocity
Lift-assist and davit options
Skid integration
Custom nozzle orientation
Element Count2–12 bags or custom
Best ForLarge-flow filtration
ClosureBolted or quick opening
2 Bag4 Bag6 Bag8 Bag10 Bag
Request Multi Bag Quote
AUTOMATIC SELF-CLEANING FILTER IMAGEReplace with scraper, brush, backwash or suction-scanner filter photo
Automatic CleaningContinuous OperationPLC Control
Automatic Filtration · Low Manual Maintenance

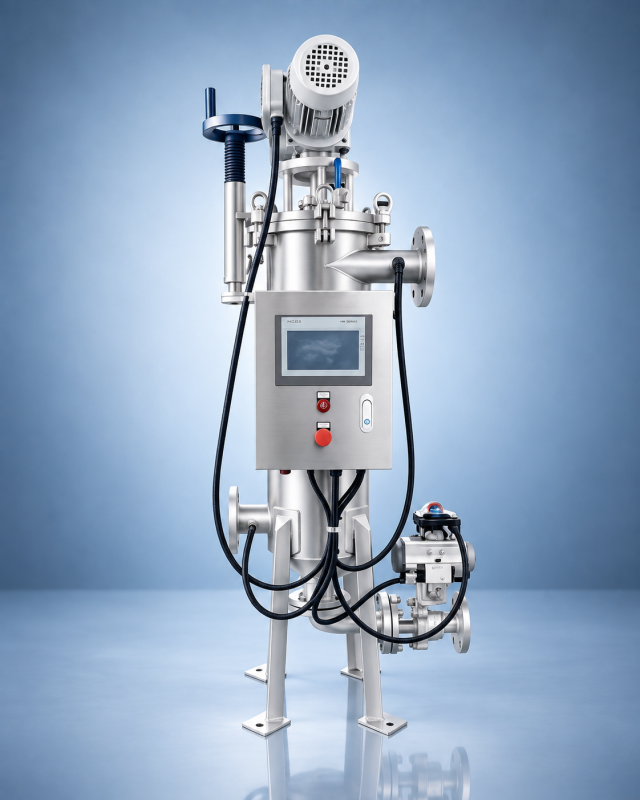

Fully Automatic Self-Cleaning Filter Housing

Automatically removes contaminants from a screen or element without opening the vessel. Cleaning can be triggered by differential pressure, time or process signals.

Scraper, brush or backwash
Continuous operation
Differential-pressure monitoring
Automatic drain valve
PLC and remote signals
Less disposable media
CleaningScraper, brush, backwash or suction
Best ForHigh-solids continuous processes
ControlDP, timer or PLC
Scraper FilterBrush FilterBackwash FilterAutomatic Drain
Request Automatic Filter Proposal
HIGH-FLOW FILTER HOUSING IMAGEReplace with horizontal or vertical high-flow cartridge housing photo
Large Cartridge AreaHigh CapacityFewer Elements
Cartridge Filtration · Large Flow

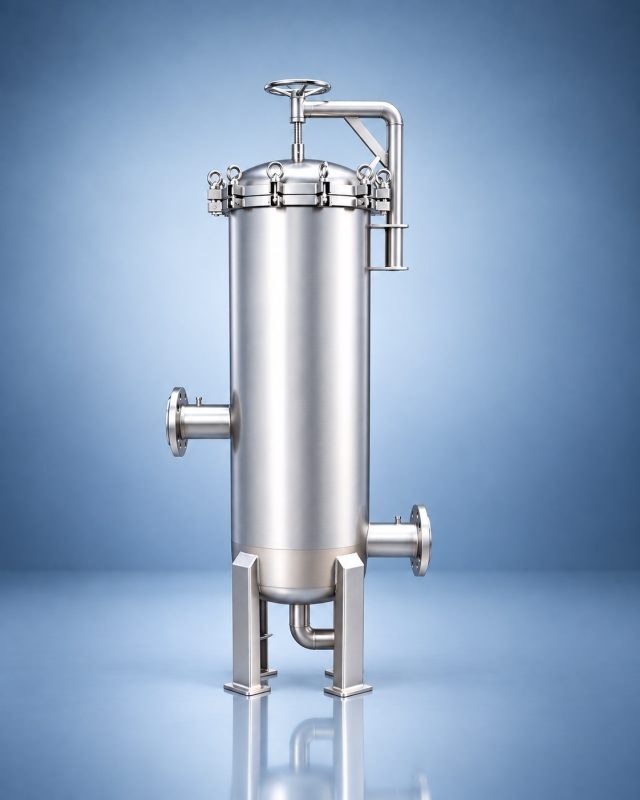

High-Flow Filter Housing

Designed for large-diameter pleated cartridges that process more liquid per element than conventional cartridges, reducing vessel size, footprint and change-out labor.

Vertical or horizontal layout
Large-diameter cartridges
Fewer elements
Reduced maintenance labor
Internal lifting options
Custom skids and manifolds
ElementsHigh-flow pleated cartridges
Best ForRO pretreatment and process water
LayoutVertical or horizontal
40-Inch60-InchHorizontalVertical
Request High-Flow Quote
MICRON PLEATED FILTER HOUSING IMAGEReplace with a multi-cartridge stainless steel housing photo
Fine Micron FiltrationMultiple CartridgesSanitary Options
Pleated Cartridge Filtration · Fine Particle Removal

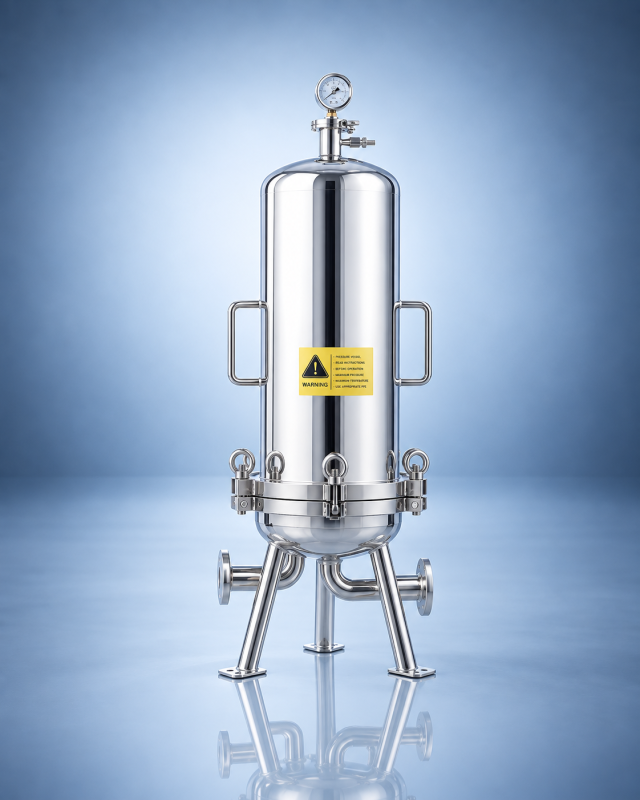

Micron Pleated Filter Housing

Holds standard or sanitary pleated cartridges for fine particle removal and liquid polishing. Compatible with PP, PES, PTFE, PVDF, nylon and glass-fiber media.

Wide media selection
Fine particle removal
Single or multi-cartridge
Industrial or sanitary design
DOE, 222 and 226 adapters
Custom length and count
Elements10–70 inch pleated cartridges
Best ForFine process filtration
InterfacesDOE, 222, 226 and custom
PPPESPTFEPVDFNylon
Request Pleated Housing Quote
PRECISION SAFETY FILTER HOUSING IMAGEReplace with a security filter or final-protection housing photo
Final ProtectionStable OutletEquipment Safety
Security Filtration · Final Equipment Protection

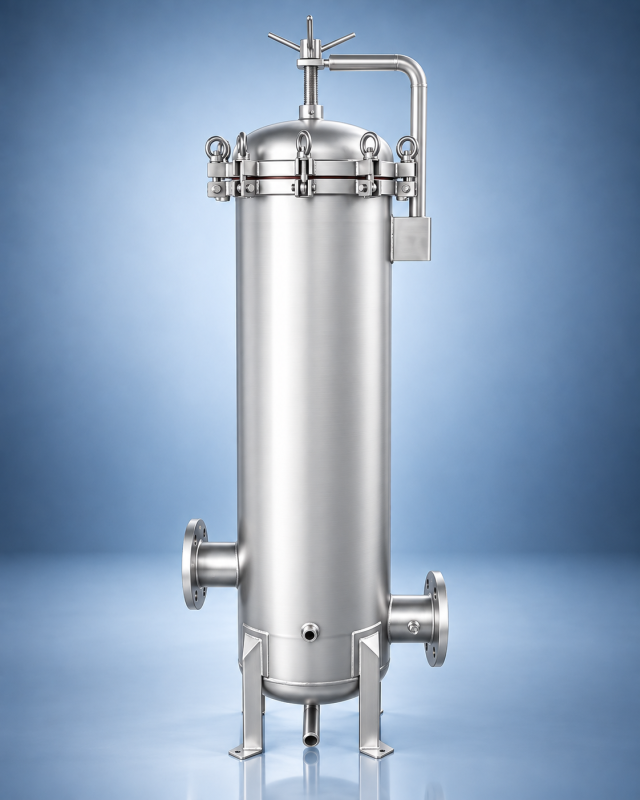

Precision Safety Filter Housing

Installed before membranes, pumps, heat exchangers, filling lines or sensitive equipment to capture residual particles and provide a final filtration barrier.

Final protective stage
Stable outlet cleanliness
Protects membranes and nozzles
Fine pleated cartridges
Sanitary and industrial designs
Gauge and vent options
PositionBefore sensitive equipment
Best ForFinal protection and polishing
ElementFine pleated or membrane cartridge
RO SecurityMembrane ProtectionFilling-Line Protection
Request Safety Housing Quote
PPH / PVDF FILTER HOUSING IMAGEReplace with a corrosion-resistant plastic housing photo
Metal-Free Flow PathCorrosion ResistanceChemical Service
Plastic Construction · Corrosive Liquid Filtration

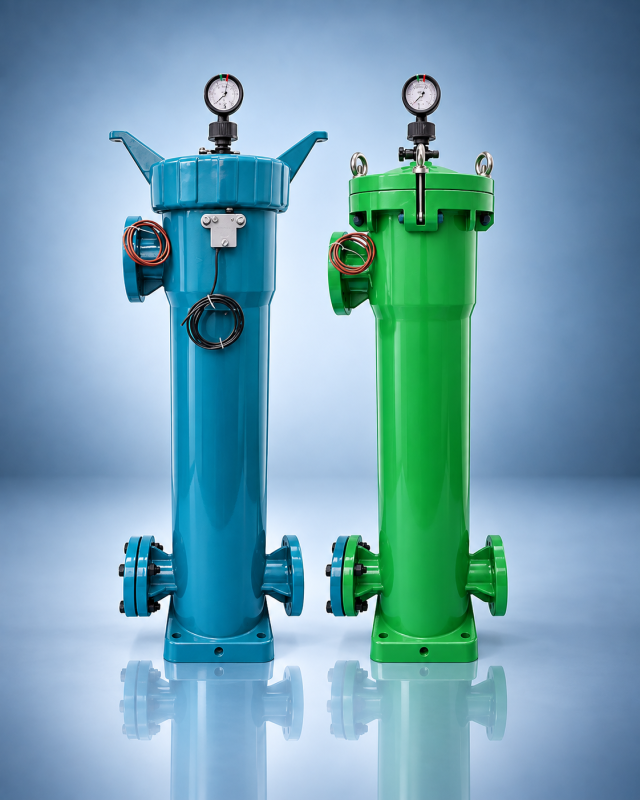

PPH / PVDF Filter Housing

Designed for corrosive chemicals, high-purity liquids and applications requiring a metal-free wetted path. PPH is economical; PVDF supports more demanding compatible chemical and purity requirements.

Corrosion-resistant construction
Metal-free wetted-path options
Compatible acid and alkali service
Bag or cartridge layouts
Flange, thread or union ports
Custom mounting supports
MaterialsPPH or PVDF
Best ForCorrosive and high-purity liquids
ElementsFilter bags or cartridges
PPHPVDFChemical FiltrationMetal-Free
Request PPH / PVDF Quote

Filter Housing Type Comparison

Use this table as an initial guide. Final design must be confirmed from actual process conditions.

Housing Type Element Flow Positioning Main Advantage Typical Applications Materials
Single Bag One filter bag Low to medium Simple and economical Batch, transfer, coatings, chemicals 304, 316L, carbon steel
Multi Bag Multiple bags Medium to high Large parallel area Cooling water, oils, chemicals 304, 316L, carbon steel
Automatic Self-Cleaning Reusable screen Continuous high flow Automatic cleaning High-solids water and process streams 304, 316L, duplex, coated steel
High-Flow Housing Large high-flow cartridges High to very high Fewer elements RO, power, seawater, process water 304, 316L, carbon steel
Micron Pleated Housing Pleated cartridges Fine filtration Wide media selection Food, pharma, electronics, chemicals 304, 316L, plastic
Precision Safety Housing Fine pleated or membrane Final protection Protects downstream equipment RO, filling and membrane systems 304, 316L
PPH / PVDF Housing Bag or cartridge Corrosive service Metal-free and corrosion resistant Acids, alkalis, plating, electronics PPH or PVDF
Pressure, temperature, chemical compatibility and flow depend on the exact material, wall thickness, seal, closure, connection and element arrangement. Confirm all project data before fabrication.

How to Select an Industrial Filter Housing

A reliable proposal begins with process data rather than housing size alone.

Define the Liquid

Provide composition, viscosity, solids, temperature and corrosion conditions.

Confirm Flow & Pressure

Specify normal and peak flow, inlet pressure and allowable pressure drop.

Select the Element

Choose a bag, pleated cartridge, high-flow cartridge or reusable screen.

Confirm Installation

Provide pipe size, connection standard, orientation, footprint and controls.

Typical Filter Housing Applications

Housings can be configured for a broad range of industrial liquid systems.

Water Treatment

Process water, cooling water, RO pretreatment and wastewater reuse.

Food & Beverage

Ingredient water, beverage clarification and edible oils.

Chemical Processing

Acids, alkalis, solvents, resins and specialty chemicals.

Paints & Coatings

Paint, ink, resin and surface-treatment filtration.

Pharmaceutical

Pre-filtration, polishing and final equipment protection.

Electronics

High-purity water and compatible process chemicals.

Oil & Petroleum

Lubricants, fuels, process oils and refinery utilities.

Power & Desalination

Condensate, cooling water, seawater and membrane protection.

Need a Filter Housing Engineered for Your Process?

Send your flow rate, pressure, temperature, liquid composition, filtration element, pipe size and installation drawing.

Request Engineering Proposal

Industrial Filter Housing FAQ

Common questions before specifying a bag, cartridge or self-cleaning housing.

What is the difference between bag and cartridge housings?

Bag housings are typically selected for high dirt loading and economical particle removal. Cartridge housings provide broader media and micron choices, including fine pleated and membrane filtration.

When should I use a multi bag housing?

Use one when a single bag cannot provide enough flow or area. Parallel bags reduce face velocity and may extend service life.

What is a precision safety filter housing?

It is a final protective cartridge housing installed before membranes, pumps, nozzles, filling equipment or other sensitive components.

When is PPH or PVDF preferred?

PPH or PVDF may be preferred for corrosive liquids or metal-free flow paths. Final selection depends on concentration, temperature and pressure.

What information is required for a quote?

Provide housing type, liquid, flow, pressure, temperature, filter element, micron rating, connections, material, seals, orientation and quantity.
