Large-Diameter Pleated Filter Elements for High Flow Systems

High Flow Filter Cartridges for Pall, Parker, 3M Style and Custom Housings

Incefiltration supplies replacement-style and custom high flow filter cartridges for industrial water treatment, RO pre-filtration, desalination, chemicals, power generation, food and beverage, and high-flow process liquid systems. Our product range includes Pall style, Parker style, 3M style and fully customized high flow cartridges.

View Cartridge Types Send Your Model Number

Typical High Flow Cartridge Options

Outer DiameterCommon large-format designs include about 6 inch / 152 mm OD, depending on housing style.
Length Options20 inch, 40 inch, 60 inch and custom lengths are available for different systems.
Flow DirectionInside-to-outside or outside-to-inside designs can be matched to the original housing.
Filtration RatingCommon options include 1, 3, 5, 10, 20, 40, 70 and 100 µm, with custom grades available.

Replacement-Style High Flow Filter Cartridges Based on Real Market Formats

High flow cartridges are large-format pleated elements developed to process more liquid per cartridge, reduce the number of elements inside a housing and simplify cartridge change-out. Incefiltration can manufacture cartridges according to drawings, samples, model numbers, end cap dimensions and operating conditions.

High Flow Per Cartridge

Large diameter and high surface area designs help reduce the number of cartridges needed for industrial water and process filtration lines.

Lower Change-Out Frequency

Pleated media structure and high dirt holding capacity can extend service life compared with many smaller standard cartridges.

Custom Compatibility

End cap, seal, diameter, length, handle, flow direction and media structure can be matched to existing Pall, Parker, 3M or custom housings.

Trademark note: Pall, Parker and 3M are trademarks of their respective owners. Incefiltration replacement-style products are supplied as compatible or custom alternatives based on buyer-provided dimensions, samples or model references. Unless specifically stated in a purchase agreement, they are not original equipment manufacturer products and are not claimed to be endorsed by the trademark owners.

High Flow Filter Cartridges by Compatibility Type

Each module below is separated by market-recognized high flow cartridge format, helping buyers choose a suitable replacement direction or custom high flow cartridge design.

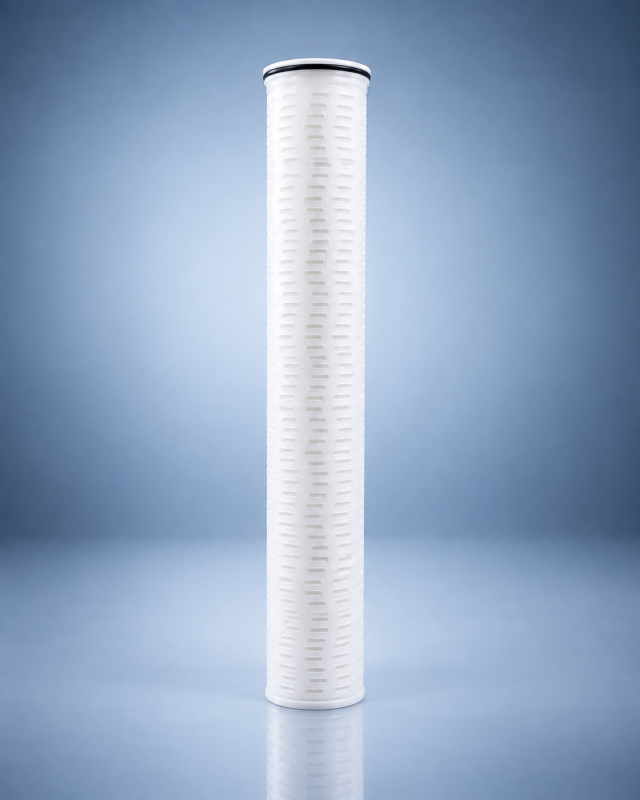

Pall Style High Flow Filter Cartridges

For systems using Pall Ultipleat® / Vector™ style large-format filter elements

Pall high flow formats are widely recognized for large-diameter pleated cartridge construction. Public Pall product information describes the Ultipleat High Flow element as a large diameter, coreless, single open-ended pleated cartridge with inside-to-outside flow. A 60 inch Ultipleat high flow cartridge is specified for high flow rates up to 113 m³/h, or 500 US gpm, per cartridge in water service conditions.

Reference FormatLarge diameter, single open-ended, pleated
Common ODAbout 6 inch / 152.4 mm style
Flow DirectionInside to outside, depending on series
Replacement-style options for Pall high flow housings Coreless large-diameter cartridge structures PP, glass fiber or custom media options 20, 40, 60 inch and custom lengths Micron ratings for water and process filtration Custom end cap and seal confirmation

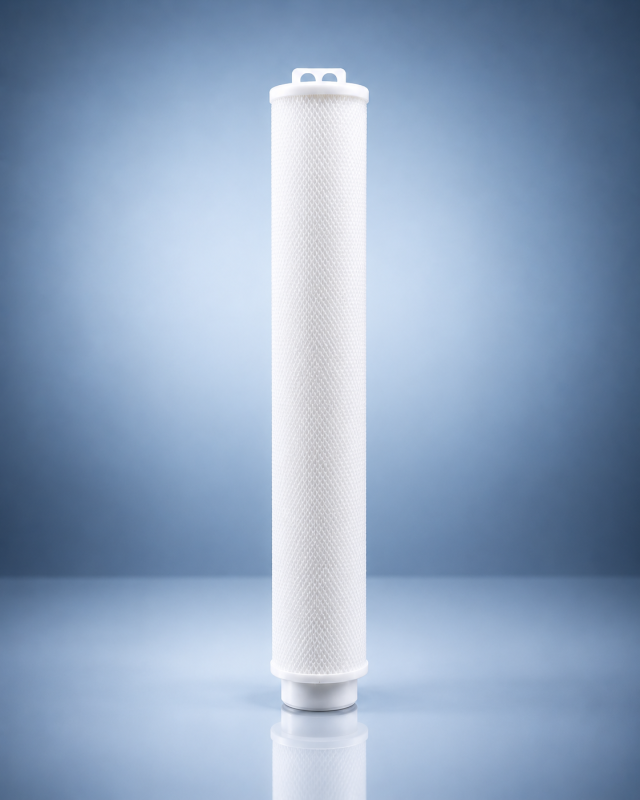

Parker Style High Flow Filter Cartridges

For Parker Fulflo® MegaFlow™ and high-flow process cartridge replacement directions

Parker high flow cartridge formats include large-format industrial process filter cartridges such as Fulflo MegaFlow. Public Parker literature positions these cartridges for high-flow industrial process filtration where cartridge length, pressure drop, media choice and housing configuration must be matched to the application. Incefiltration can manufacture Parker style high flow cartridges according to sample, drawing or target model number.

Reference FormatLarge-format pleated industrial cartridge
Common UseRO pre-filtration, industrial water, chemicals
CustomizationEnd cap, seal, core, length and micron rating
Replacement-style Parker high flow cartridge manufacturing Large-diameter pleated filter media Nominal or application-based micron selection Custom gasket materials such as EPDM, NBR or silicone Suitable for high-flow industrial filtration projects OEM packaging and private label options

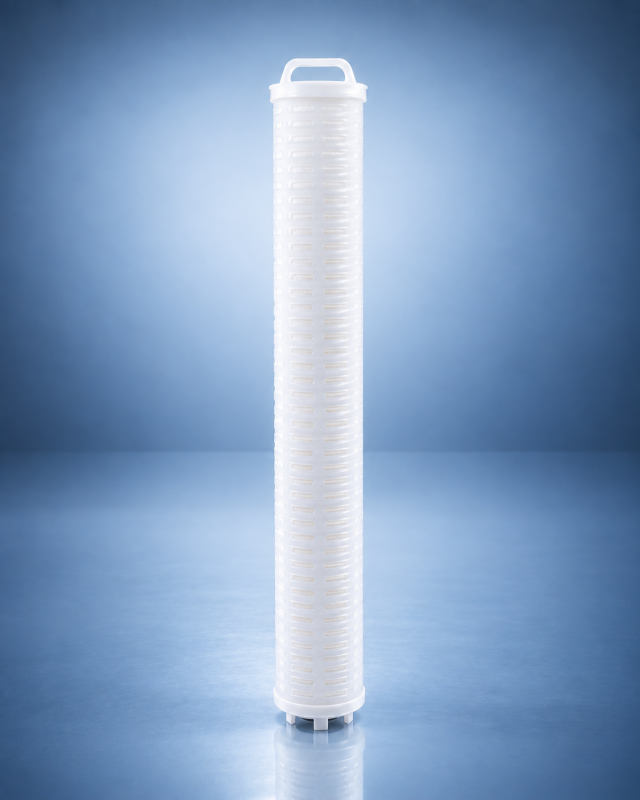

3M Style High Flow Filter Cartridges

For 3M™ High Flow Series and HFR retrofit-style cartridge applications

3M/Solventum high flow product information describes the HFR Series as a retrofit cartridge option designed to fit existing Pall Ultipleat High Flow housings. Public product data also shows 6 inch outside diameter cartridge geometry, 20 inch length options, absolute-rated particle retention and industrial applications including chemical manufacturing, food and beverage, industrial water, microelectronics and power generation.

Reference Format3M High Flow / HFR style
Common ODAbout 6 inch / 15.24 cm style
Typical UseRetrofit and high-flow industrial systems
3M style replacement high flow cartridges Retrofit-style options for selected high flow housings Absolute or nominal rating targets by request 20, 40, 60 inch and custom configurations Food, beverage, industrial water and chemical filtration Custom label and bulk export packaging

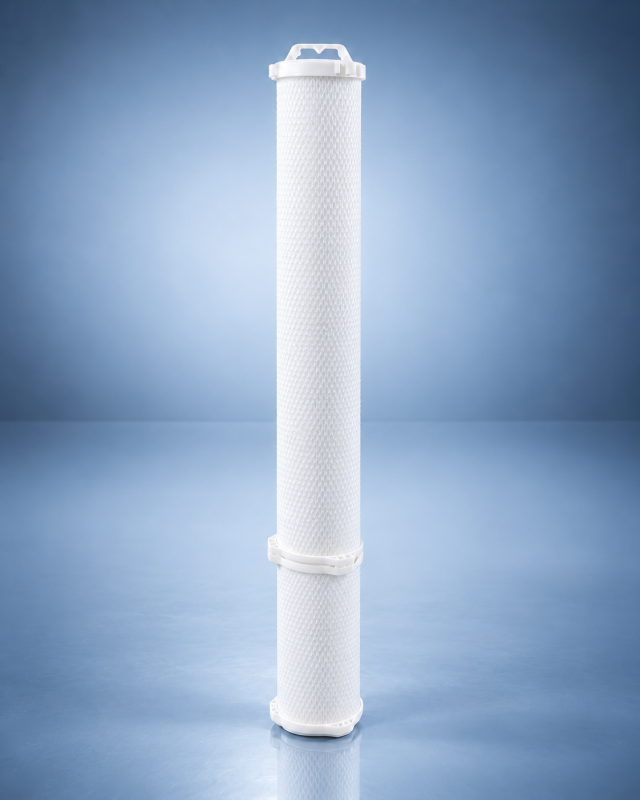

Custom High Flow Filter Cartridges

For OEM housings, non-standard systems and new filtration projects

Custom high flow filter cartridges are suitable when the customer has a special filter housing, imported replacement model, non-standard end cap, unusual sealing structure or project-specific operating condition. Incefiltration can design and manufacture large-diameter cartridges based on working liquid, target micron rating, expected flow rate, differential pressure and installation dimensions.

Custom SizeOD, ID, length and end cap by drawing
Custom MediaPP, PE, glass fiber, PES or composite media
Custom Rating1–100 µm and application-specific ratings
Design from drawing or sample OEM and private label production Custom handle, core and support layer Multiple seal materials available Small trial order and bulk production support Technical selection support for new projects

High Flow Cartridge Compatibility Comparison

The table below summarizes common selection points. Actual dimensions and operating limits should always be confirmed by cartridge drawing, original model number, sample measurement or housing specification.

Category Reference Market Format Common Real-World Data Points Incefiltration Supply Direction Typical Applications
Pall Style Ultipleat® / Vector™ high flow cartridge formats Large diameter around 6 inch; single open-ended pleated structure; inside-to-outside flow on Ultipleat format; high flow up to 500 gpm per 60 inch cartridge in Pall published water data. Replacement-style cartridges by model, sample or drawing; custom media, micron rating, seal and length. Water treatment, oil and gas, chemicals, power generation, RO pre-filtration.
Parker Style Fulflo® MegaFlow™ and related Parker large-format process cartridges Large-format industrial cartridge series used for high-flow process filtration; selection depends on cartridge length, pressure drop, media and housing structure. Parker style large-diameter pleated cartridges with custom end cap, gasket and micron rating. Industrial process water, chemicals, desalination pre-treatment, cooling water, filtration skids.
3M Style 3M™ High Flow Series / HFR retrofit-style cartridges HFR Series described as fitting existing Pall Ultipleat High Flow housings; public product data shows 6 inch OD, 20 inch example length and absolute-rated retention options. 3M style replacement cartridges and retrofit-oriented high flow cartridge manufacturing. Food and beverage, industrial water, chemicals, microelectronics, power generation.
Custom High Flow Non-standard housings, OEM systems and private-label filtration equipment Dimensions, end cap, flow direction, media, seal and micron rating are fully project-specific. Custom design based on drawing, sample, model number or operating parameters. OEM systems, local replacement markets, plant maintenance, equipment manufacturers.

Applications of High Flow Filter Cartridges

High flow cartridges are selected when the system needs high liquid throughput, fewer cartridge elements, easier maintenance and reduced housing footprint.

RO Pre-Filtration

Particle removal before reverse osmosis membranes to help protect downstream membrane elements.

Desalination

High-flow pre-treatment for seawater and brackish water desalination systems.

Power Generation

Condensate, cooling water, make-up water and process water filtration in power plants.

Food & Beverage

Process water, ingredient water and liquid clarification in compatible food and beverage applications.

Chemical Processing

Filtration of compatible chemicals, solvents and process liquids with high flow demand.

Microelectronics

Pre-filtration and particle control in high-purity process water and supporting systems.

Oil & Gas

High-flow filtration for selected upstream, midstream and utility liquid applications.

Industrial Water

Cooling water, circulation water, wastewater reuse and general plant water filtration.

How to Customize a High Flow Filter Cartridge

To produce a correct replacement-style cartridge, Incefiltration confirms dimensional details and working conditions before production. This helps avoid leakage, bypass, excessive pressure drop and poor service life.

Confirm Original Format

Send the original model number, drawing, photo or used sample. We check OD, length, end cap and seal structure.

Confirm Working Conditions

Provide liquid type, flow rate, temperature, pressure, filtration target and current service life.

Select Media & Rating

Choose PP, PE, glass fiber or composite media with proper micron rating and efficiency target.

Produce & Supply

Incefiltration supports samples, batch orders, OEM label, neutral packaging and export supply.

Key Parameters to Confirm

High flow cartridges may look similar, but small details decide whether the element seals correctly in the housing.

Overall length Outer diameter and inner diameter End cap style Seal material and groove size Handle or grip structure Inside-out or outside-in flow direction Micron rating and filtration efficiency Maximum differential pressure

Why Buy from Incefiltration?

We support industrial buyers who need compatible replacement cartridges, OEM products or new high-flow cartridge designs.

Factory-direct manufacturing Replacement-style and custom production Technical drawing confirmation Flexible material selection Bulk order capability Export-friendly packaging Distributor and OEM support Application-based recommendation

Need a Pall, Parker, 3M or Custom High Flow Cartridge Alternative?

Send your original cartridge model number, photos, drawing or sample dimensions. Incefiltration will help confirm compatibility and recommend a suitable high flow filter cartridge solution.

Request a Quote

High Flow Filter Cartridge FAQ

Common questions before purchasing replacement-style or custom high flow filter cartridges.

Can Incefiltration supply original Pall, Parker or 3M cartridges?

Incefiltration mainly supplies replacement-style and custom compatible high flow filter cartridges. Pall, Parker and 3M are trademarks of their respective owners. Unless stated in a signed agreement, our products are not original OEM products from those brands.

What information is needed to make a compatible high flow cartridge?

Please provide the original model number, cartridge length, outer diameter, inner diameter, end cap shape, seal material, flow direction, micron rating, working liquid, flow rate, operating temperature and photos or drawings if available.

Can you make custom end caps and seals?

Yes. End caps, handles, seal grooves, O-ring materials and connection structures can be customized based on sample measurement or technical drawings.

What micron ratings are available?

Common high flow cartridge ratings include 1, 3, 5, 10, 20, 40, 70 and 100 µm. Other nominal or absolute filtration targets can be discussed based on media type and application.

Are high flow cartridges suitable for RO pre-filtration?

Yes. High flow cartridges are frequently used for RO pre-filtration and desalination pre-treatment because they can process high water flow with fewer elements and a smaller housing footprint.
