Flat Cover Type
Flat-top cover design for standard industrial bag filtration.
INCE-FC-219
Industrial Stainless Steel Bag Filtration
Single Bag Filter Housing for High-Flow Liquid Filtration
Incefiltration manufactures single bag filter housings in 304 and 316L stainless steel for petrochemical, fine chemical, pharmaceutical, power, papermaking, water treatment, automotive, mechanical processing, coatings and electronics applications. Side-entry and top-entry designs are available with 1# to 5# filter bags and multiple connection, seal and surface-finish options.
Verified Product Data
Material304 stainless steel / 316L stainless steel
Design Pressure1.0 MPa
Filter Bag Type1#, 2#, 3#, 4#, 5#
ConnectionsTri-clamp, thread or flange
Single Bag Filter Housing Features
The features below are organized directly from the supplied Incefiltration product sheet.
High Precision
Compatible with high-efficiency filter bags for filtering a wide range of liquid materials.
Low Filtration Loss
Large flow and high filtration precision help reduce consumable use and operating cost.
Easy to Operate
Simple construction allows one person to operate, open and maintain the housing.
Flexible Material Selection
General-purpose stainless steel construction supports many industrial liquid-filtration scenarios.

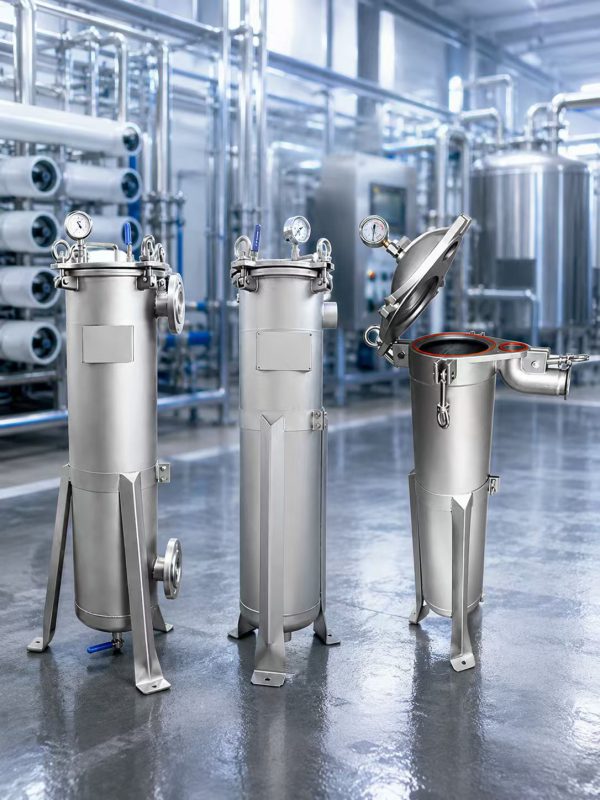

Product Structure & Introduction
The housing uses a thickened vessel body, reinforced cover, support legs, filter basket and filter bag to provide a compact and maintainable filtration system.
Thickened Top CoverQuick-open lifting ring and reinforced cover structure
Liquid InletSide-entry or top-entry configuration
Thickened Cylinder Body304 or 316L stainless steel vessel
Liquid OutletFlange, thread or tri-clamp connection
Verified Material & Configuration Data
Material304 stainless steel / 316L stainless steel
Design Pressure1.0 MPa
Filter Bag Type1#, 2#, 3#, 4#, 5#
Surface FinishMechanical polishing / sandblasting
Entry TypeSide entry / top entry
Inlet / Outlet ConnectionTri-clamp / thread / flange
Seal GasketSilicone / Viton-FKM / PTFE / EPDM
Typical ApplicationsPetrochemical, fine chemical, pharmaceutical, electric power, papermaking, water treatment, automotive, mechanical processing, coatings and electronics
Filter Basket + Bag
The perforated basket supports the filter bag and prevents bag collapse.
Quick-Open Design
Lifting rings and quick-opening closures simplify filter bag replacement.
Reinforced Support Legs
Thickened and widened legs improve vessel stability during operation.
Single Bag Filter Housing Types
Five housing configurations are listed in the supplied product parameter table.
Concave Cover Type
Concave cover configuration with reinforced quick-opening hardware.
INCE-CC-219Turtle Back Type
Domed turtle-back cover for improved structural form and pressure distribution.
INCE-TB-219High-Pressure Type
Reinforced 4.0 mm vessel-wall configuration listed as the HV model.
INCE-HV-219Single-Core Type
Single-core configuration for project-specific filtration requirements.
INCE-SC-219Single Bag Filter Housing Parameters
The following data is taken from the supplied INCE-219 series parameter table.
| Product Type | Device Model | Barrel Diameter | Inlet / Outlet | Reference Flow | Wall Thickness |
|---|---|---|---|---|---|
| Flat Cover Type | INCE-FC-219 | Ø219 mm | DN50 Flange | 20 T/H | 3.0 mm |
| Concave Cover Type | INCE-CC-219 | Ø219 mm | DN50 Flange | 20 T/H | 3.0 mm |
| Turtle Back Type | INCE-TB-219 | Ø219 mm | DN50 Flange | 20 T/H | 3.0 mm |
| High-Pressure Type | INCE-HV-219 | Ø219 mm | DN50 Flange | 20 T/H | 4.0 mm |
| Single-Core Type | INCE-SC-219 | Ø219 mm | DN50 Flange | 20 T/H | 3.0 mm |
The table represents the supplied INCE-219 series reference configuration.
Connection size, flow capacity, vessel diameter, wall thickness and dimensions can be customized for the actual process.
Single Bag Housing by Filter Bag Type
The housing series supports 1#, 2#, 3#, 4# and 5# filter bag configurations.
Standard Industrial Bags
Common liquid filter bag selections for general industrial filtration.
1# Bag
2# Bag
3# Bag
Compact Filter Bags
Smaller bag options for compact housings, pilot systems and lower-volume filtration.
4# Bag
5# Bag
Custom Bag Media
Select bag material and micron rating according to chemical compatibility and particle-removal requirements.
PP
PE
Nylon
PTFE
Custom Micron
Materials, Connections & Seal Options
Configure the housing according to corrosion, hygiene, installation and maintenance requirements.
Housing Materials
Choose the vessel material according to the working liquid and corrosion conditions.
304 Stainless Steel
316L Stainless Steel
Entry Configuration
Select the inlet arrangement according to flow distribution and installation space.
Side Entry
Top Entry
Pipe Connections
Match the plant piping standard and maintenance requirement.
Tri-Clamp
Thread
Flange
Seal Gaskets
Select the seal according to liquid compatibility and operating temperature.
Silicone
Viton / FKM
PTFE
EPDM
Dimension Reference Diagrams
The supplied drawing uses a 2# filter bag housing as an example. Final dimensions vary by closure, inlet arrangement, bag size and support structure.
Front Elevation Reference
Reference barrel diameter Ø219 × 3 mm and an example cylindrical section dimension of approximately 700 mm.
Side-Entry Reference
The supplied side-view drawing shows overall reference dimensions around 981 mm with project-specific inlet projection and support arrangement.
Top / Compact Arrangement
The supplied reference includes an approximate overall height of 850 mm and a 560 mm body/support reference dimension.
Dimension values are reference readings from the supplied drawing, not universal dimensions for every INCE-219 model.
Custom fabrication is supported; approve the final production drawing before manufacture.
Typical Single Bag Filter Housing Applications
The housing can be configured for a broad range of industrial liquid-filtration processes.
Petrochemical
Process liquids, utility water, oils and compatible petrochemical streams.
Fine Chemicals
Particle removal from compatible acids, alkalis, solvents and specialty chemicals.
Pharmaceutical Chemicals
Pre-filtration and clarification using appropriate sanitary finishes and seals.
Electric Power
Cooling water, condensate, utility water and equipment-protection filtration.
Papermaking
Water, coatings, additives and process-liquid filtration.
Water Treatment
Industrial water, RO pretreatment and wastewater-reuse filtration.
Automotive & Coatings
Paint, coating, pretreatment and circulation-liquid filtration.
Electronics
Compatible process-water and chemical filtration for electronics manufacturing.
How to Select a Single Bag Filter Housing
A reliable selection begins with the liquid, flow, pressure, bag and installation conditions.
Confirm the Liquid
Provide chemical composition, viscosity, temperature, solids concentration and corrosion conditions.
Select Bag Size & Micron
Choose 1# to 5# bag size and the required filtration accuracy based on particle size and dirt loading.
Choose Housing Configuration
Select flat, concave, turtle-back, reinforced HV or single-core structure with side or top entry.
Confirm Connections & Finish
Specify flange, thread or tri-clamp, gasket material, polishing, sandblasting and installation dimensions.
Need a Custom Single Bag Filter Housing?
Send your flow rate, pressure, liquid, bag size, micron rating, connection and installation drawing.
Single Bag Filter Housing FAQ
Common questions before selecting an INCE single bag housing.
What stainless steel materials are available?
The supplied product sheet lists 304 stainless steel and 316L stainless steel.
What filter bag sizes are supported?
The housing can be configured for 1#, 2#, 3#, 4# and 5# filter bags.
What is the design pressure?
The standard design pressure shown in the supplied sheet is 1.0 MPa. Final design conditions must be confirmed for each project.
Which inlet and outlet connections are available?
Tri-clamp, threaded and flanged connections are available. The INCE-219 parameter table uses DN50 flange as the reference configuration.
Can the housing dimensions be customized?
Yes. Barrel diameter, wall thickness, height, inlet orientation, support legs, surface finish and connection size can be customized after drawing approval.
Request a Single Bag Filter Housing Quote
Complete the process and configuration information below for an accurate housing proposal.
